This is my new project... I just love Sega Nomads, so i thought i should get some and rebuild them to the best possible state.
 |
| i am in love |
The first one arrived and i did some cleaning inside and outside, also the standard LCD with CCF Light is not top of the notch (and very power insufficient).
 |
| backside (you need a sega/nintendo bit to open the mid screw) |
 |
| this is how the opened device looks |
 |
| old lcd with ccf module removed |
 |
| the old lcd (ewww) |
So i got a 3,5" LCD/TFT and installed it (almost every 3,5" will work as long as it has rca/chinch video input)
I am also looking for a better speaker replacement (maybe also a little amplifier like i had on the gameboy).
I changed the red low battery led to a blue one, gives it a nicer touch
 |
| you have to unsolder the lcd connection to remove it properly |
here are the connections points for the lcd (sorry for bad quality - pics made by phone)
 |
| LCD Connection (white goes to lcd ground, red to lcd power +) |
 |
| yellow is the video signal of lcd, black also goes to ground |
 |
| just use some hot glue to stick lcd to the case |
 |

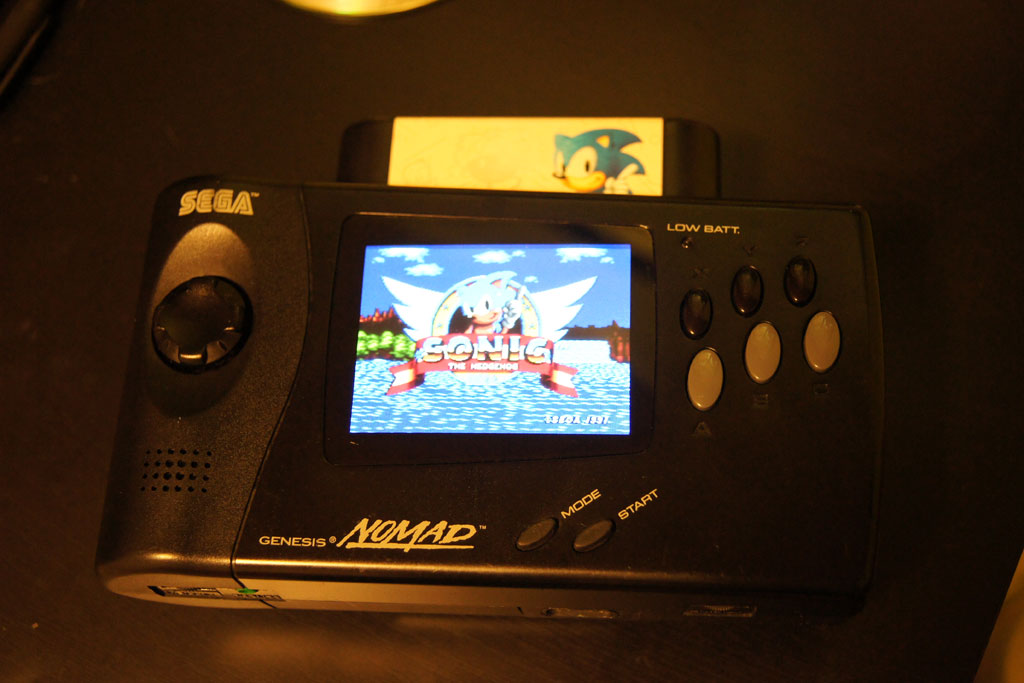

| finished the lcd mod |
 |
| alot better :-) |
Next Step is a LiPo 7,4V high power battery pack - stay tuned for more...
